Brainlab Robotic SuiteAccuracy
in Every Step

A Holistic Approach to Surgery

The Robotic Suite creates an ecosystem of accuracy at every step of the surgical workflow by leveraging versatile software to combine three Brainlab products with state-of-the-art modalities – high-resolution robotic imaging from Loop-X, data processing and precise navigation with Curve and automatic, stable surgical support with the next-generation robotic arm, Cirq. Each product in the Robotic Suite can be used individually, but the synchronized use of the three products can offer steady, unified and uninterrupted support during surgical procedures.

Our foundation

High resolution, distortion free images are the foundation for accuracy in surgery.

Prerequisite for precision

Automatic image registration inherent to the imaging process is a prerequisite for precision in every step of the surgical procedure.

Data processing

The aggregation of images from multiple sources, precise fusion and automatic segmentation create a high-resolution anatomical context and set a benchmark for accuracy.

Planned automation

Planned automation based on a detailed anatomical model enables the software to determine and anatomically optimize the three-dimensional implant position.

This eliminates inaccuracies associated with manually adjusting implant positions in two-dimensional projections.

Precise navigation

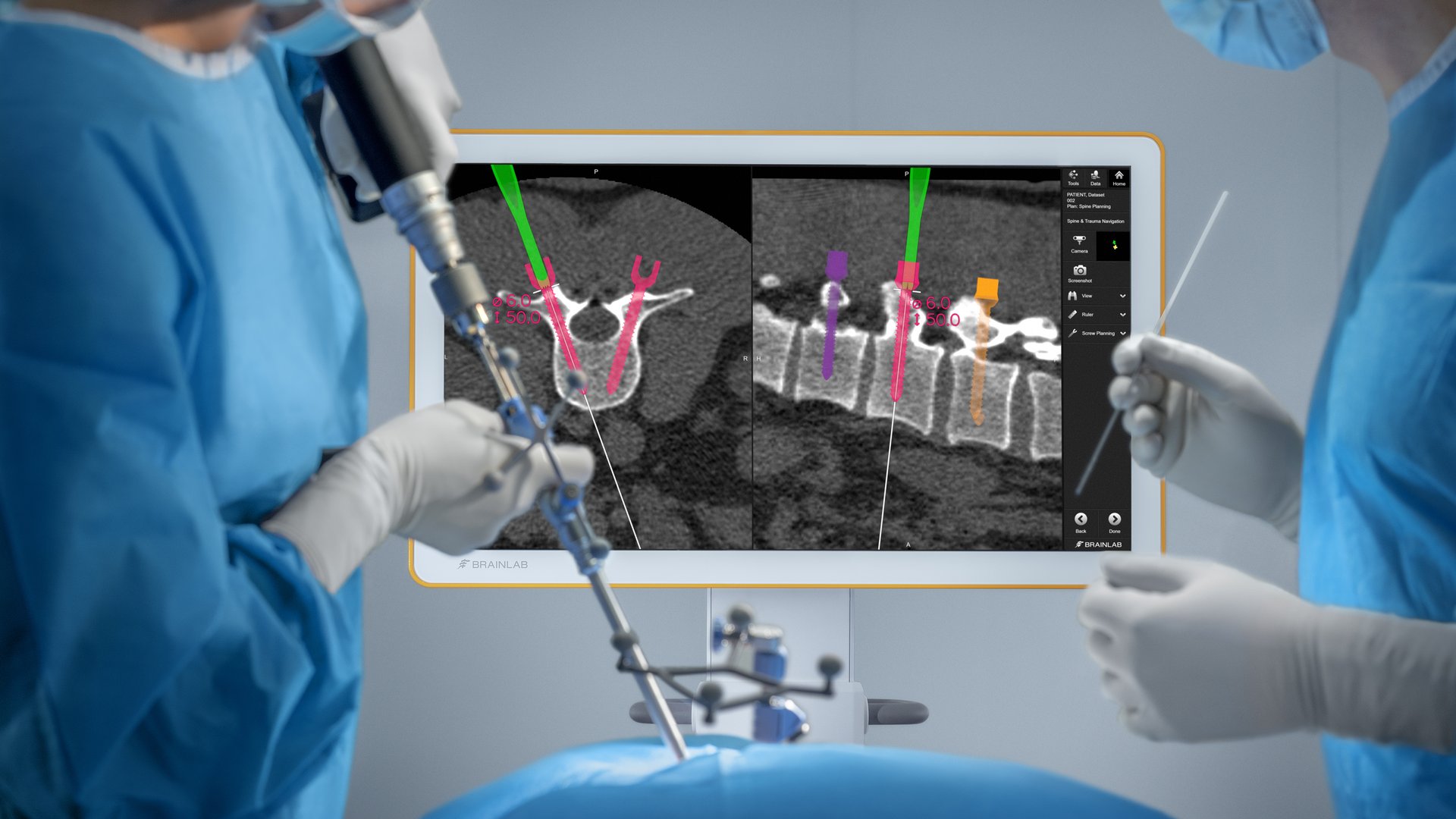

Precise navigation continuously provides information on the position of tracked surgical instruments.

Robotic alignment

Ultimately, robotic alignment ensures accuracy while the surgeon controls, sustains or executes each surgical step.

Explore our products in 3D

3D-View Loop-X
3D-View Cirq

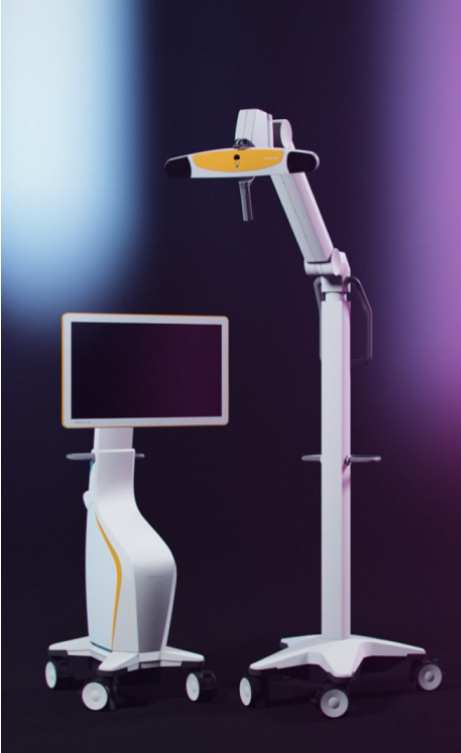

3D-View Curve

How the Robotic Suite Provides Accuracy in Every Step

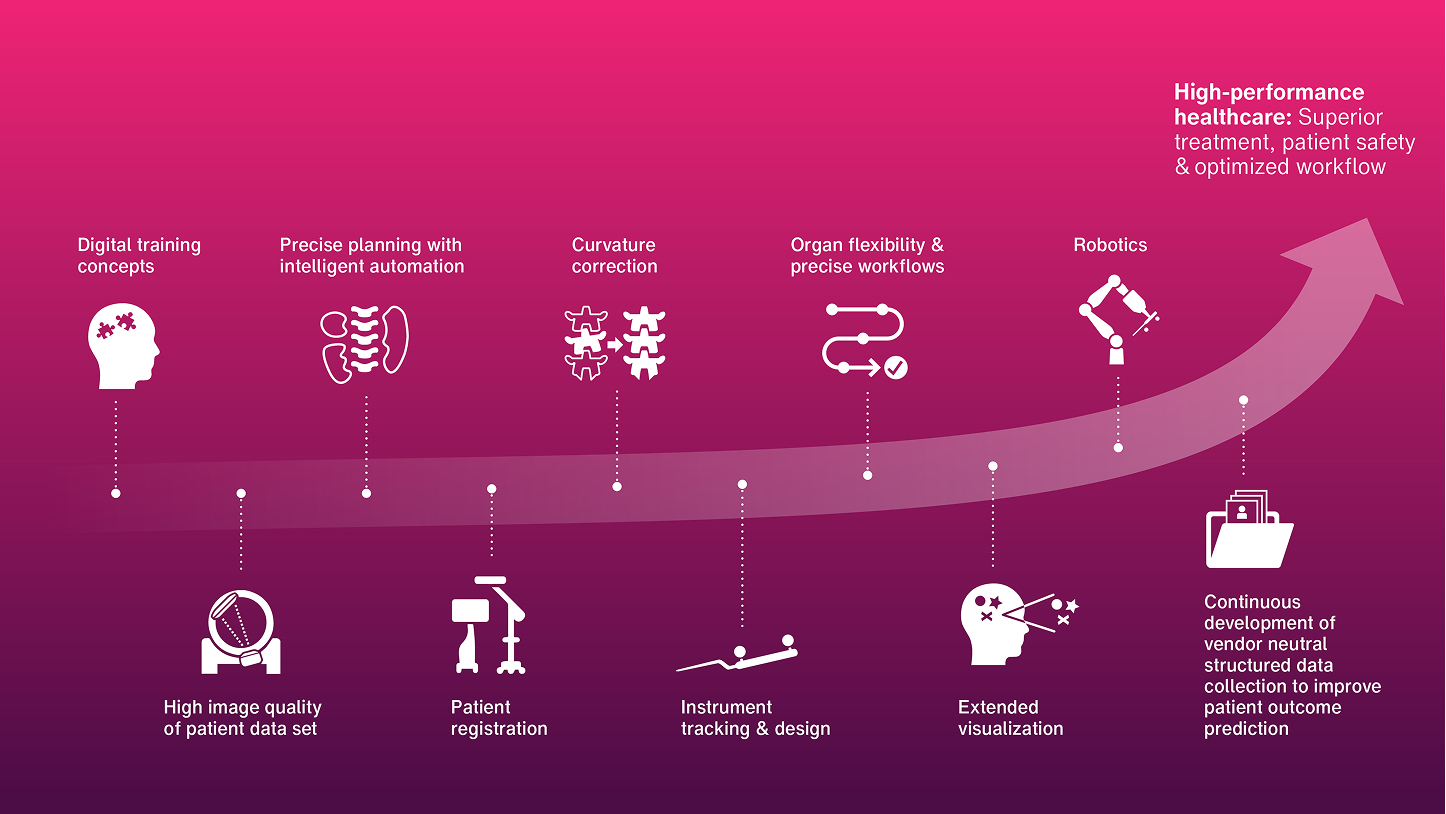

Diagram illustrating the Accuracy of the Robotic Suite at Every Step

Key Benefits of the Robotic Suite

  • Complete compatibility of three powerful, standalone products with tools designed to support and verify accuracy from start to finish

  • Automatic image registration, transfer and storage as well as efficient data management

  • Detailed anatomical mapping, intelligent CT/MR image fusion and automatic screw planning create an uninterrupted path for patient data, surgical planning and execution

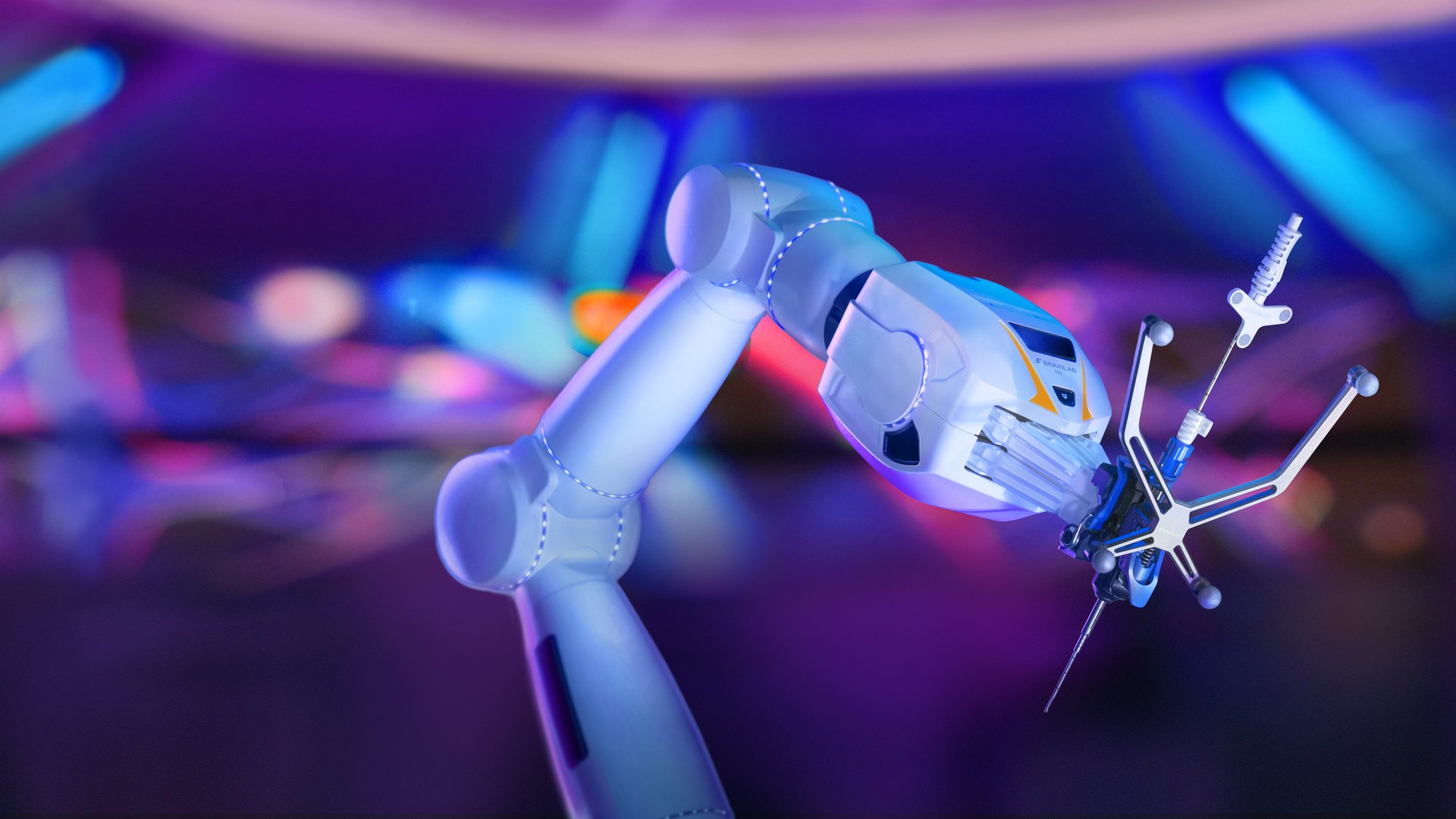

  • Automatic, precise and stable support from the robotic arm while the surgeon controls and sustains each surgical step

  • Easily transportable and compact equipment for streamlined integration in the O.R.

The use of Loop-X increases image quality especially in complex regions, like the thoracic-lumbar region, as well as in obese patients.

Uwe Spetzger, MD, Städtisches Klinikum Karlsruhe, Germany

Today we used the Robotic Suite to successfully perform an operation at the top of the cervical spine. There is only one correct way the operation can be conducted. Any deviations could lead to partial or complete damage to the spinal cord, causing paralysis, stroke or bleeding.

Stefan Huber-Wagner, MD, Diakonie-Klinikum Schwäbisch Hall, Germany

The CHU d’Angers team was looking for equipment that was both innovative and guaranteed better patient safety. The Brainlab Robotic Suite brings safety and precision to the surgical gesture.

Bernhard Faguer, MD, CHU d’Angers, France

We use a navigated drill guide as a low-pressure tool to drill all the pilot holes first and then place all the k-wires. This speeds up the process and enables surgeons to maintain accuracy throughout the entire procedure.

Bernhard Meyer, MD, Klinikum Rechts der Isar, Germany

The use of Loop-X increases image quality especially in complex regions, like the thoracic-lumbar region, as well as in obese patients.

Uwe Spetzger, MD, Städtisches Klinikum Karlsruhe, Germany

Today we used the Robotic Suite to successfully perform an operation at the top of the cervical spine. There is only one correct way the operation can be conducted. Any deviations could lead to partial or complete damage to the spinal cord, causing paralysis, stroke or bleeding.

Stefan Huber-Wagner, MD, Diakonie-Klinikum Schwäbisch Hall, Germany

Webinars

Watch our Robotic Suite webinar

Comprised of high-definition robotic imaging from Loop-X, versatile image-guided surgery with Curve Navigation and the next-generation robotic arm, Cirq, the combination of these three products is designed to provide support at every step of the surgical workflow.

Watch recording

More Webinars

Deepen your knowledge about individual Robotic Suite products


Interoperative Imaging | Cranial Surgery

Transforming Surgery with Loop-X Mobile Imaging Robot – Demo with Q&A Session

Miriam Stadthalter
Watch now

Robotics | Neurosurgery

Robotics in Spinal Surgery using Cirq instrument Holder and Cirq Robotic Alignment Module

Mr. Syed Aftab
Prof. Sandro Krieg
Watch now

Surgery Navigation | Surgery Planning

My key to Success in Spine Navigation – Ask the Experts

Sandro Krieg, M.D.
Yi Yuen Wang, M.D.
Watch now

Additional Information

Loop-X mobile imaging robot
Automation in spine surgery planning
Cirq robotics in spinal procedures

Are you ready to experience accuracy in every step?
