Loop-X Mobile Imaging RobotBring flexible imaging into your brachytherapy suite

Discover more

Loop-X* enables high-quality 2D and 3D imaging for every step of your brachytherapy workflow—from applicator position verification and confirmation to brachytherapy treatment planning—directly in the treatment room. This reduces patient transfers, supports procedural accuracy, increases treatment confidence and enhances comfort for your patients.


Image and verify
right in your treatment room

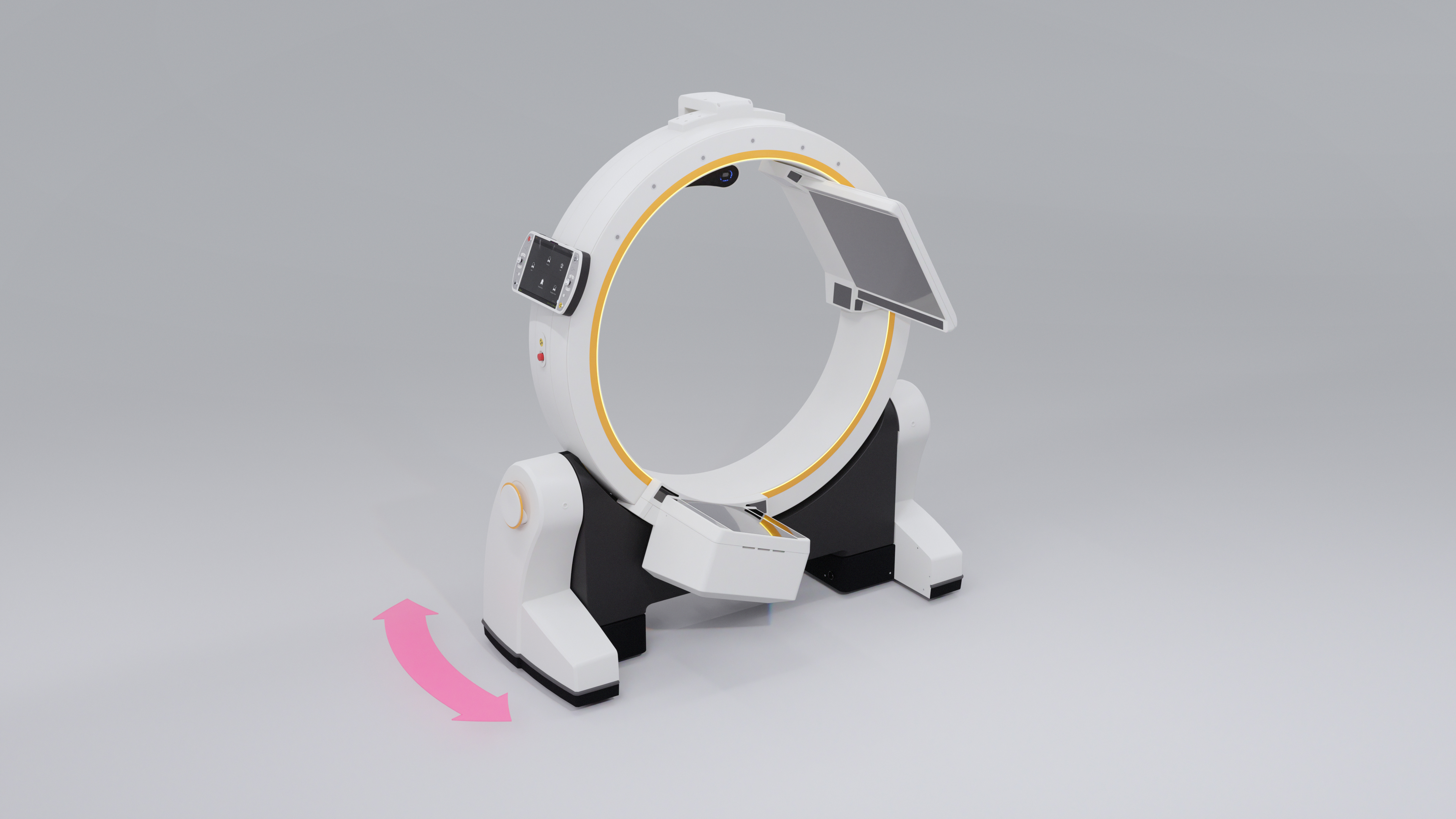

With a footprint of only 1.5 m², Loop-X works even in small treatment rooms. At the push of a button, you can achieve fast, precise robotic alignment. Imaging directly in the treatment room reduces the need for patient transfers between rooms or tables, improving overall workflow efficiency and reducing the risk of applicator displacement. Imaging can be done from outside of the treatment room, thanks to the wireless remote control panel.

studio-fotosession-28-008-2019-1147_01_range_c_16_9_dynamiccollimationtechnology_crop.jpg

See larger regions
in more detail

Equipped with a large 43 x 43 cm flat-panel detector, Loop-X enables stepless 3D scan volume adjustment, from 3 × 3 cm to 48 x 48 cm diameter, providing you with flexibility for larger anatomical regions. Loop‑X delivers high‑quality 2D, 3D and fluoroscopic imaging with high spatial resolution for accurate anatomical visualization, supporting applicator position confirmation and brachytherapy treatment planning.

Loop-X - Mobile Robotic Imaging - Brainlab

Tailor imaging
to your patient

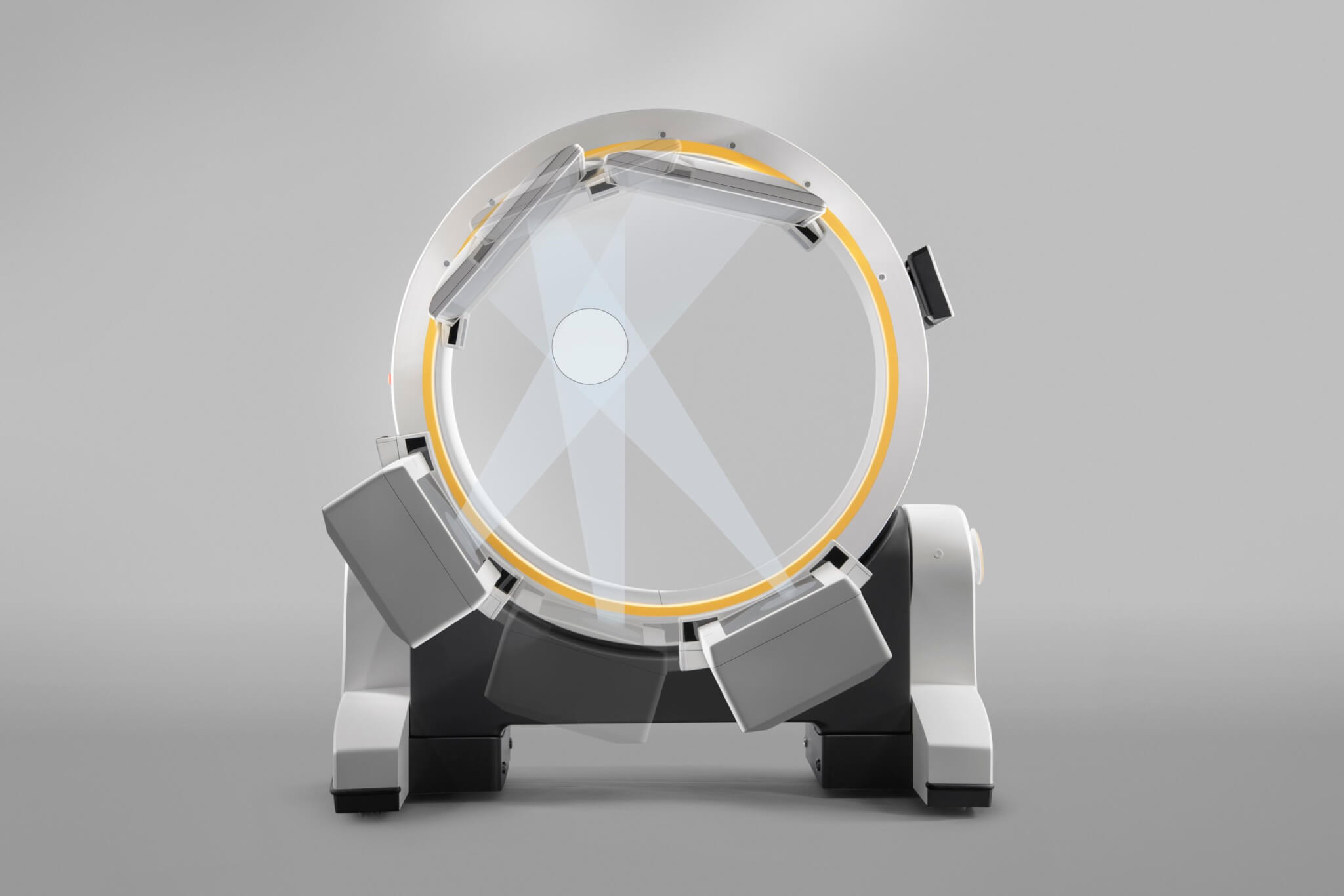

With a 121 cm gantry opening and independent movement of source and detector, Loop-X supports flexible positioning adapted to your individual patient’s anatomy, enabling precise and reliable treatment delivery in a broad range of clinical scenarios. Less patient repositioning and quicker overall procedures greatly contribute to patient comfort.

Streamline your brachytherapy workflow

Reduce the need for patient transfers between imaging and treatment rooms and support efficient treatments across a broad spectrum of applications—from gynecological procedures such as vaginal and cervical brachytherapy to prostate brachytherapy and other indications.

Loop-X details
perfectly suited to brachytherapy

Wireless remote keeps you in control

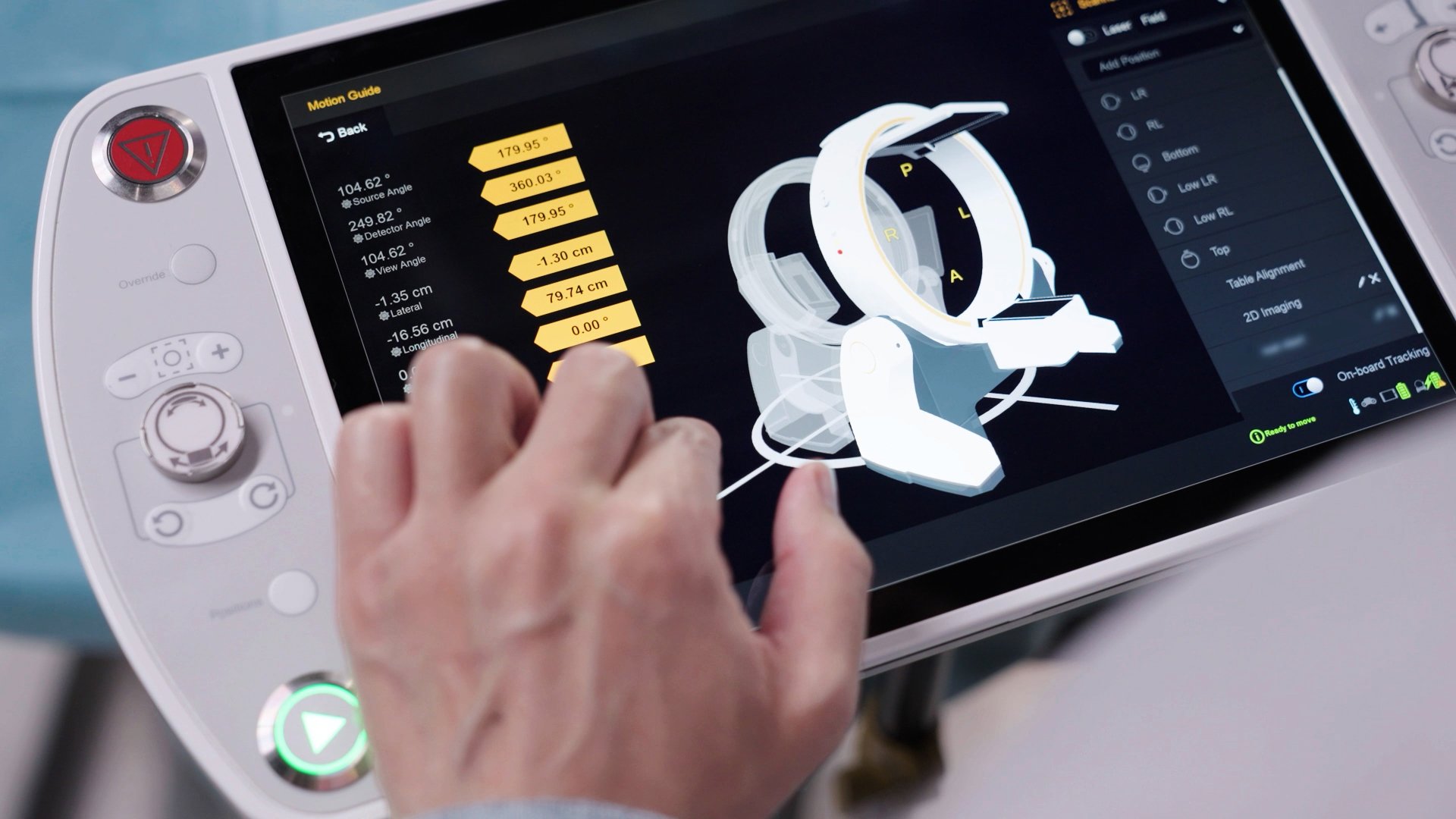

The completely wireless remote control panel with intuitive joysticks, high resolution touchscreen and hard coded buttons simplifies maneuverability and gives you control from outside the treatment room.

Robotic movements built for flexibility

The robotic functionalities of Loop-X enable autonomous movement and unlimited position recall, allowing precise reacquisition of x-ray. In addition, Loop-X robotic movements enable advanced 3D imaging protocols, improving image quality when metal objects are in the field of view.

A truly user-friendly interface

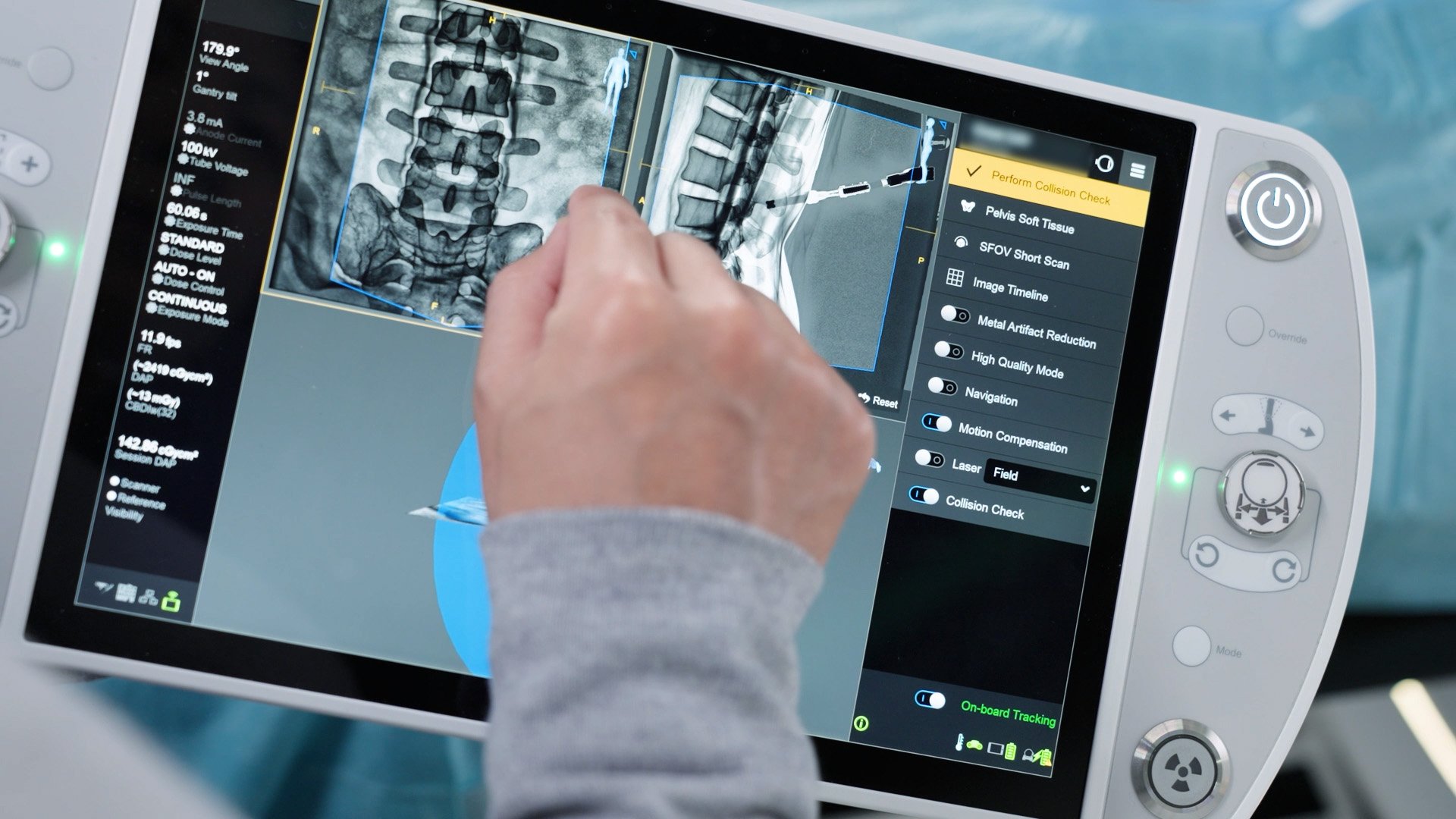

Loop‑X has an intuitive user interface designed to make using the system straightforward. Guided workflows simplify complex procedures, enabling fast workflows.


Protocols that optimize imaging

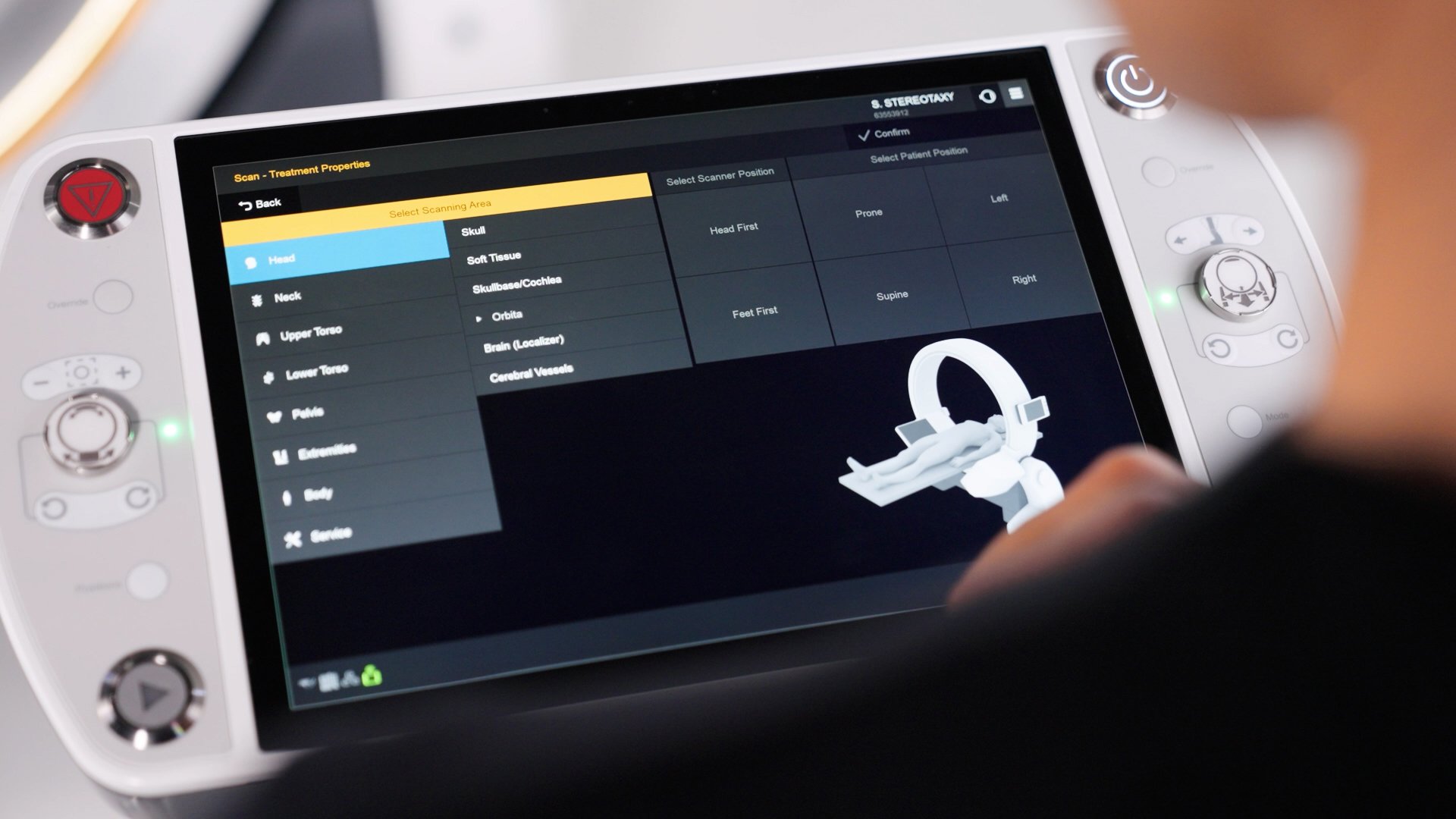

With imaging protocols tailored to specific anatomical regions, you can achieve optimal image quality while effectively managing radiation dose. These protocols support consistent, high-quality imaging across all brachytherapy procedures.

brainlab_loop-x-mobile-imaging-robot-functional-neurosurgery-demo-video_121130_retouched.jpg

There's more to discover about Loop-X Mobile Imaging Robot

Learn more

*not yet commercially available in several countries. Please contact your sales representative.
